Helios Helios In-Wall Volume Control

The impedance matching stereo volume control is a common concept in whole-house audio installation. It is a full range volume control that can be adjusted to meet the requirements of your installation. With a simple change to the impedance matching switch, you can safely connect multiple pairs of speakers to a single amplifier (or receiver). Refer to the charts provided in this manual to determine how to set the switch to ensure the proper impedance level is sent to your amplifier.

Features

Features selectable impedance settings at 2X, 4X and 8X

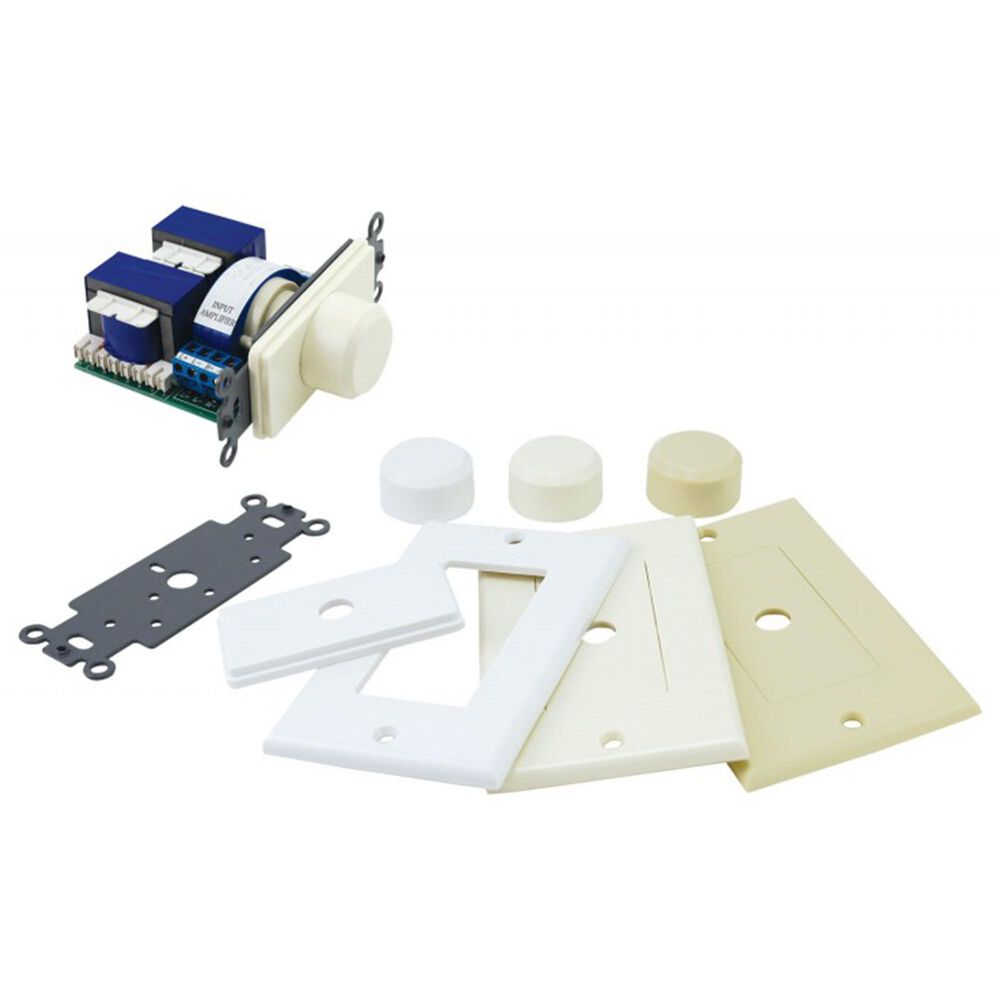

Contains white, ivory and bone colored wall plates

Installs in either standard single plate or decorator style applications

Can be used with any combination of 4 ohm, 8 ohm, or 16 ohm speakers

Impedance adjusted easily with a single switch mounted just behind the decorator-style frame- unlike most models, you don't have to remove the entire volume control to adjust impedance

12 steps of attenuation: all the way counter-clockwise is completely off: all the way clockwise is completely open

Frequency response: 20 Hz to 20kHz (+0/-2db) at rated power

Removable green connecting strips accept up to 12 gauge wire

Independent grounds for use with any amplifier

Decorator-style faceplate included

Fits most plastic electrical junction boxes with a minimum depth of 3.25"

Due to lighting and monitor differences, actual colors and finishes may vary slightly from what appears online
