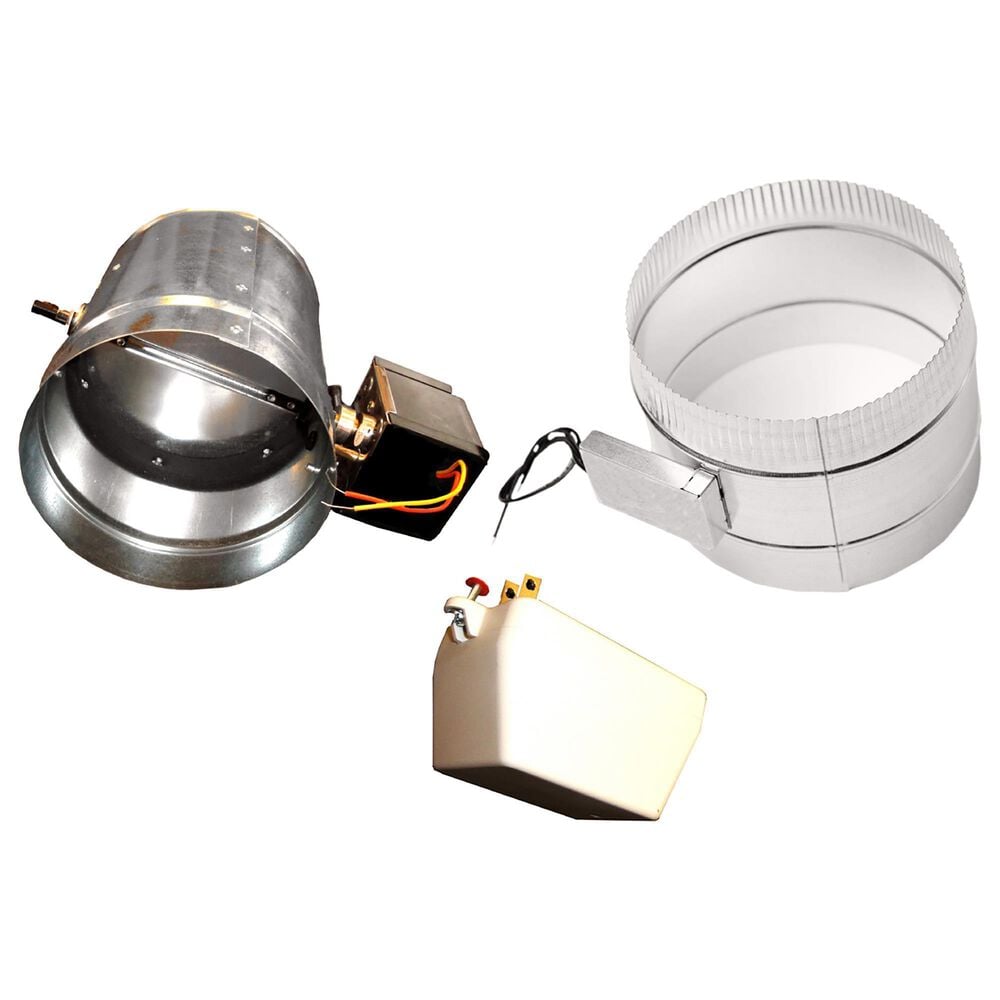

Faber 10" Universal Makeup Air Damper Kit
SKU#:
56188659
UPC:
8015139911365
Model:
MUDAMPER10
N/A NFM Price
There was an error in delivery service, please try again later. If you have questions or would like additional help, call 1-800-336-9136.
Product Description
With higher cfm hoods more air is exhausted in tighter homes with less air coming back in. To "make up" for lost air, the Universal Make up Air kit brings fresh outside air into the home through a separate fresh air duct. The automatic damper opens inside the duct to bring in air when the hood is operating above 400 cfm and closes tightly when the hood is off.- Meets IRC (international residential code) M1503.4
- 24 Vac, 60 hz ac motor on damper
- Fresh air damper opens automatically when hood is operating, closes shut when fan is turned off
- Switch assembly attaches directly above the hood inside ducting
- Can be installed in all ducting configurations (vertical, horizontal, down or after elbows)
- Switch assembly fits inside all faber chimneys, compatible with all models over 300 cfm
- Simple installation: no drilling, calibrations or measuring required
- Designed and engineered to withstand heavy cooking contaminants (grease, steam, smoke and steam)
- Can be combined with most other hvac components and is a universal makeup air solution
- Reliable mechanical air switch prevents service issues and false tripping of system
- Due to lighting and monitor differences, actual colors and finishes may vary slightly from what appears online
Info & Guides
Dimensions and Weight
Depth
10.000 inches
Width
10.000 inches
Weight
10.00 lbs
