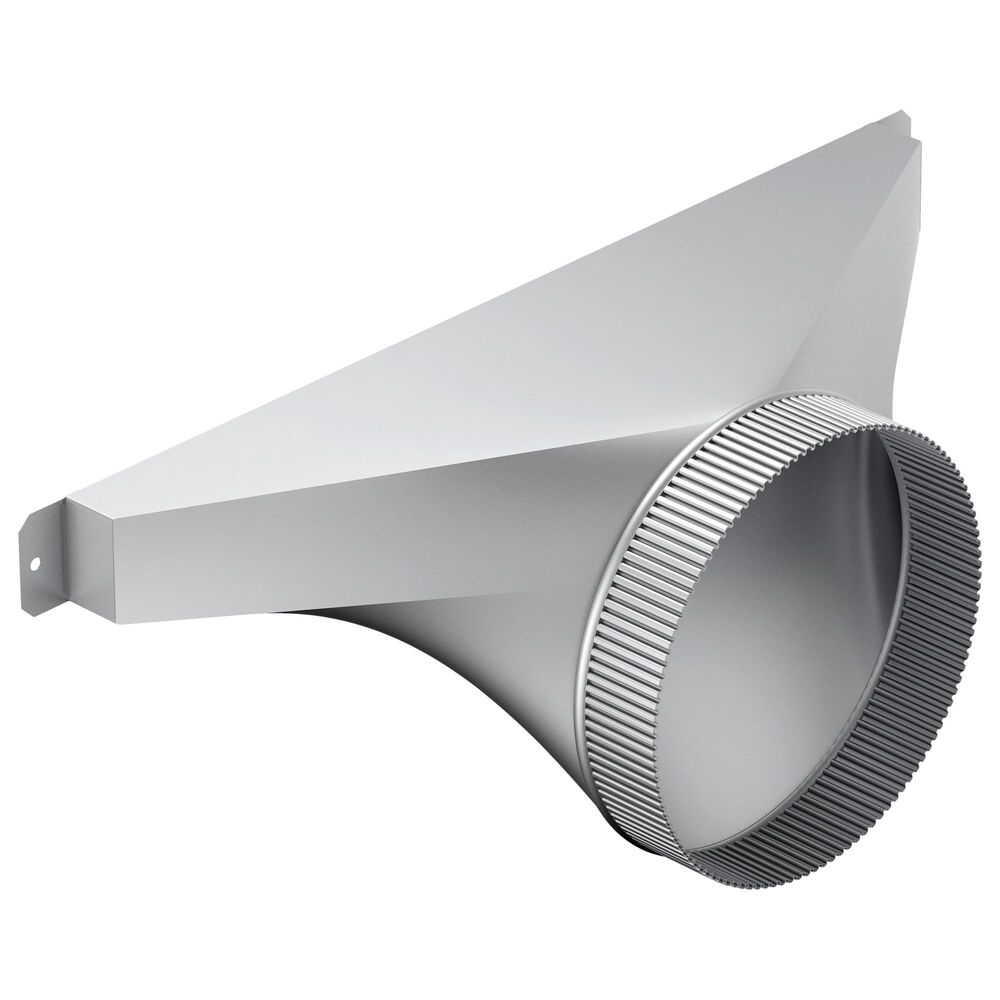

Thermador 8" Duct Side/Rear Transition for Downdraft

SKU#: 54504956
Model: CVTSIDE8

Must Call to Order
1-800-336-9136

  • Not on Display in Omaha Store
  • Order Today!
  • Estimated arrival to Omaha Store: Tue 05/20/25.

Product Description
8 inch round transition allows left, right, or rear venting with Masterpiece® downdrafts using flexible blower as inline.

  • For use with VTD600P blower as an inline installation
  • Use with ducting or elbows with 8 inch round duct connection
  • Can attach to downdraft housing or CVDUCT2 rectangular duct accessory

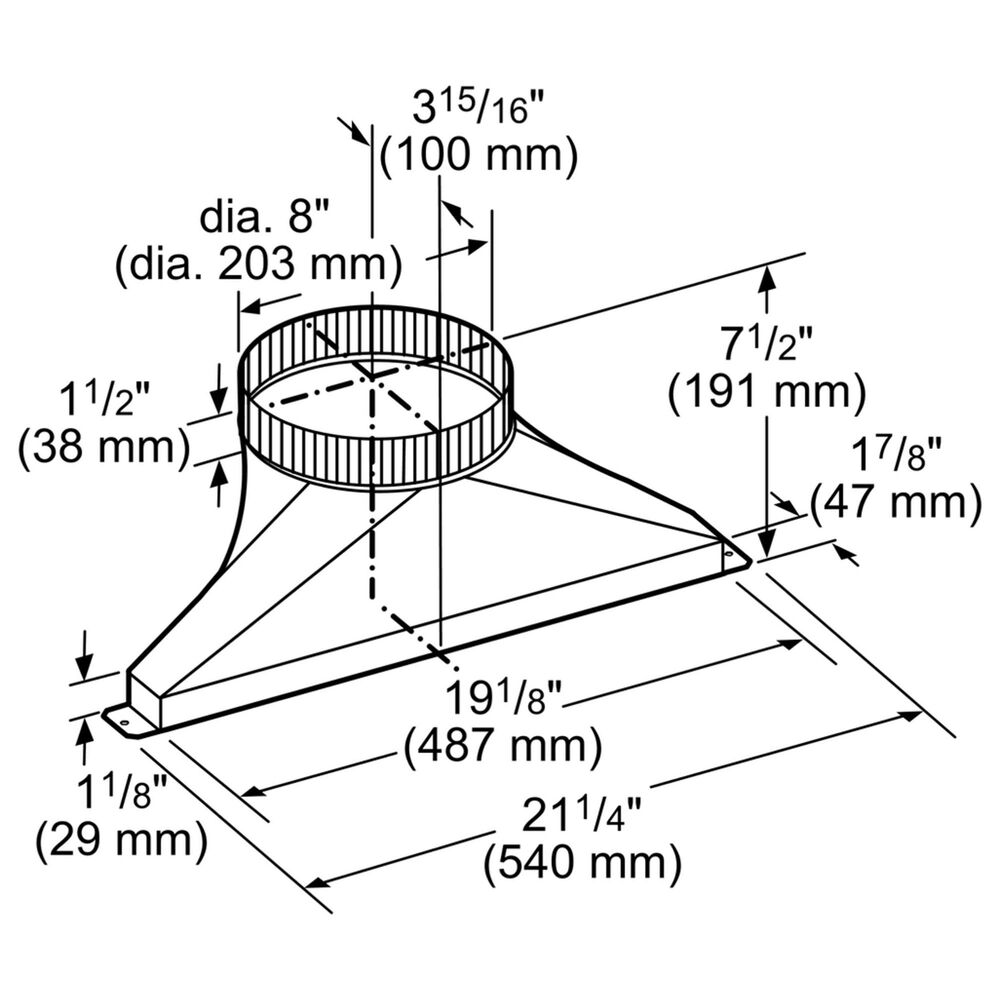

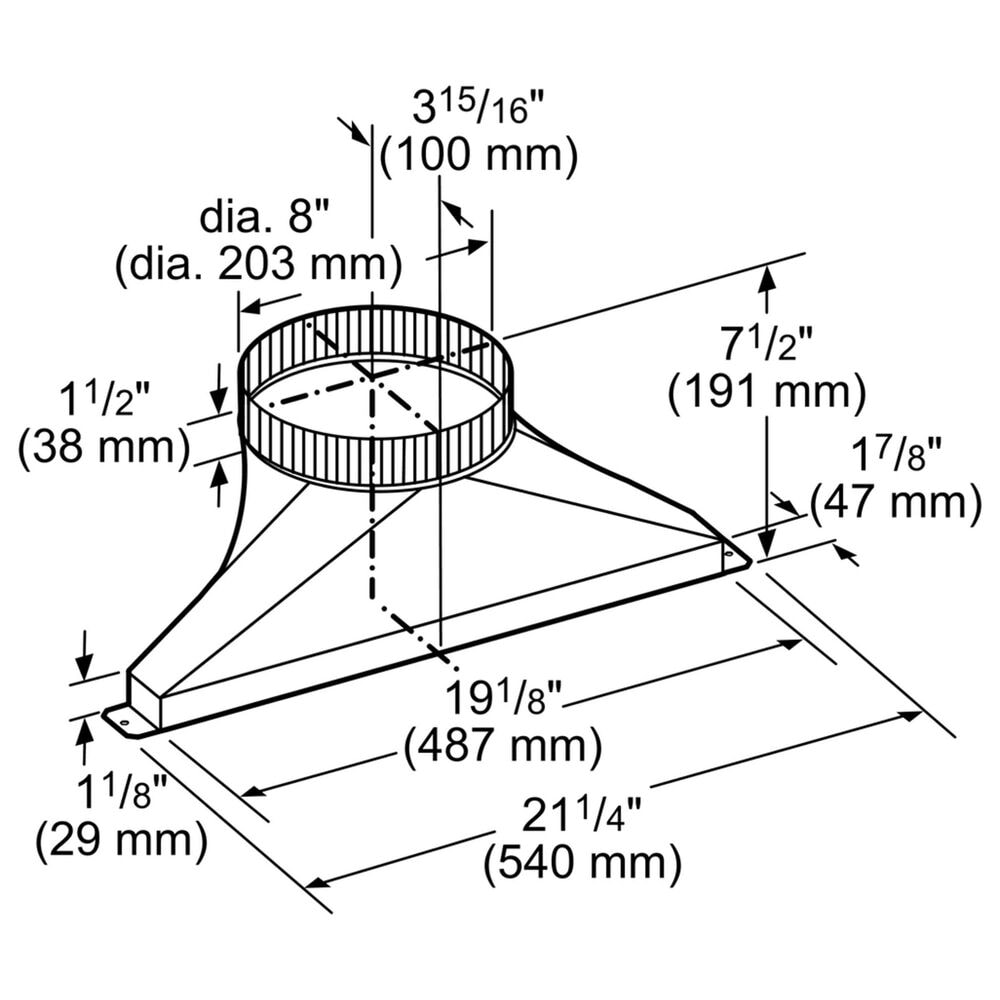

  • Rectangular 1-7/8" x 19" transition to 8" round
  • Due to lighting and monitor differences, actual colors and finishes may vary slightly from what appears online
  • Designed for use with UCVM30RS, UCVM36RS, UCVP36RS downdrafts
General
Accessory Type Ducts and Venting
Product Type Ducts and Venting
Dimensions and Weight
Depth 8.000 inches
Height 7.500 inches
Width 21.250 inches
Weight 3.00 lbs
