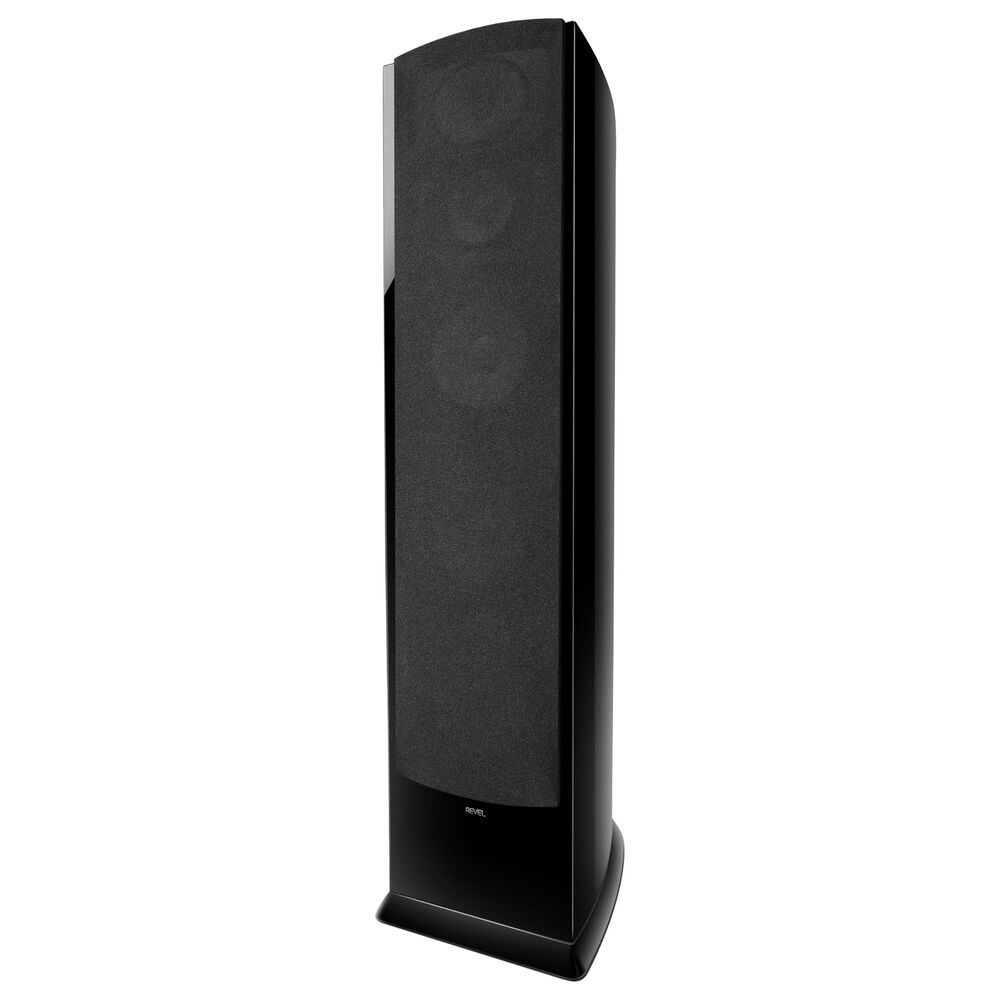

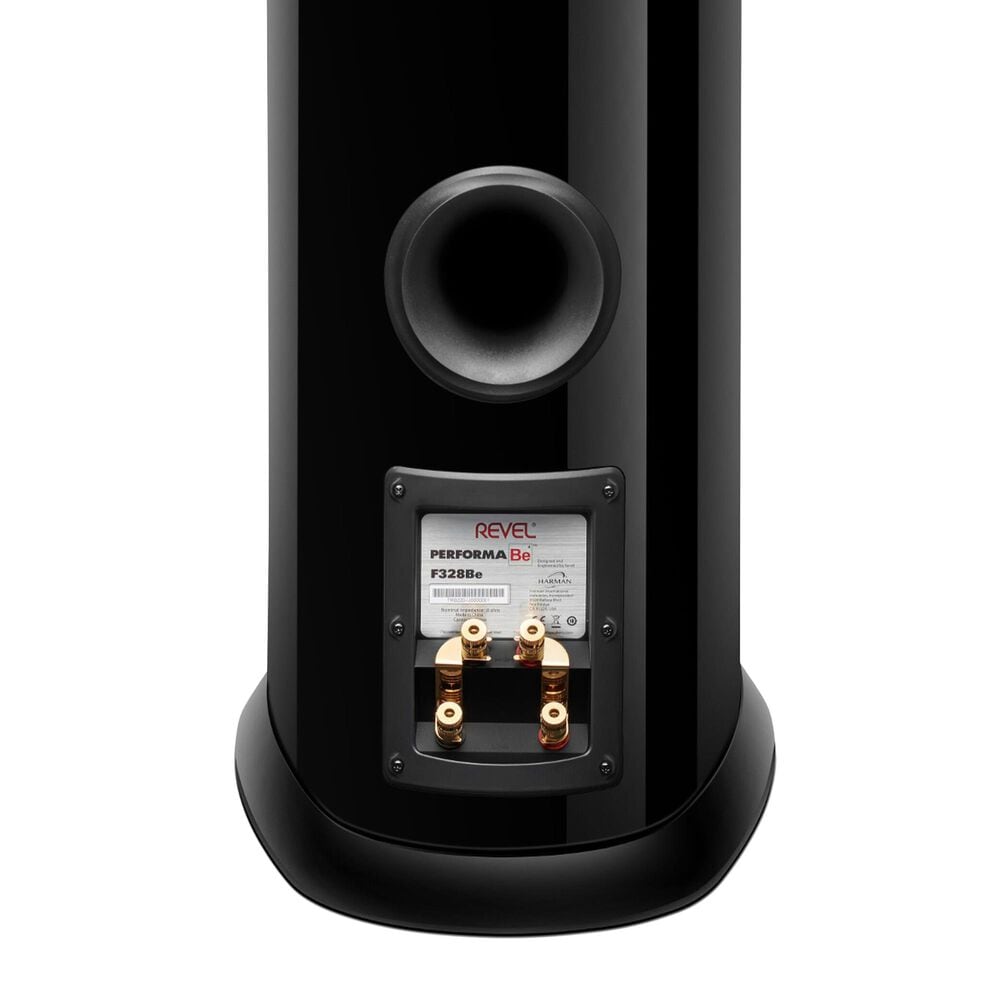

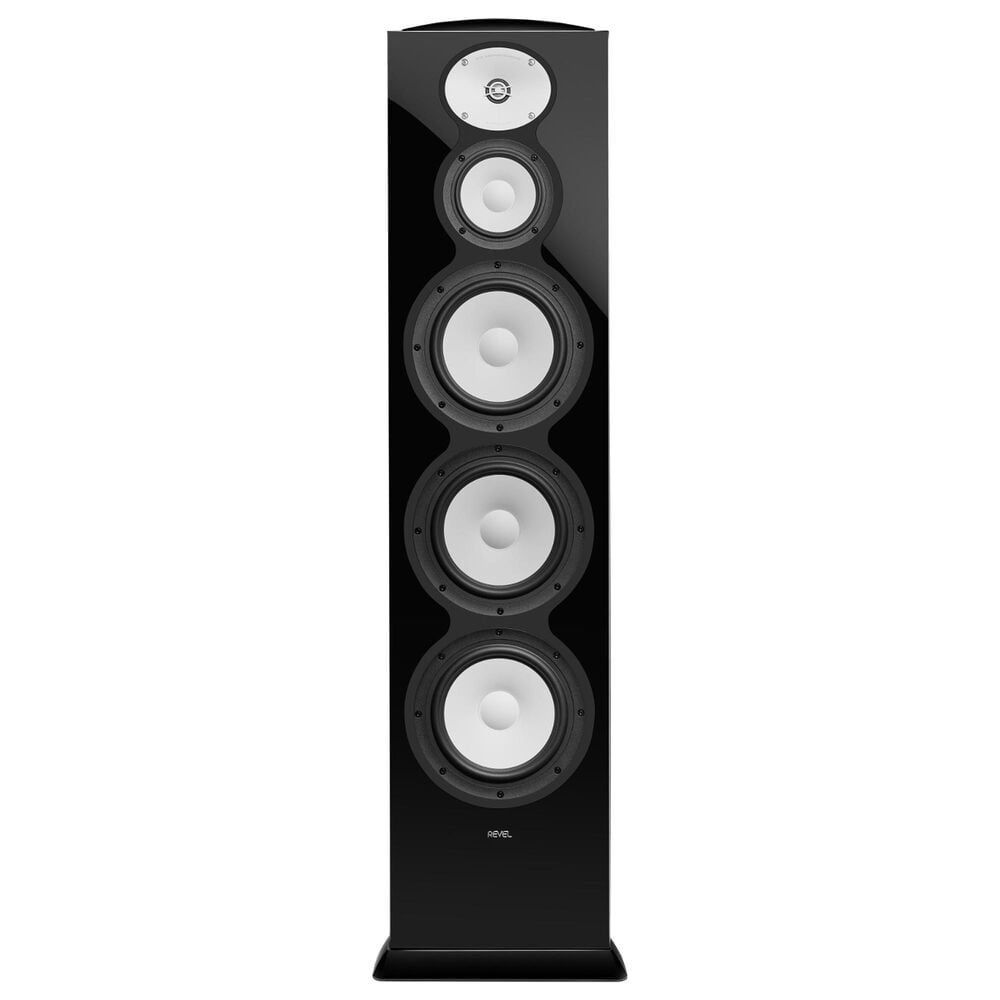

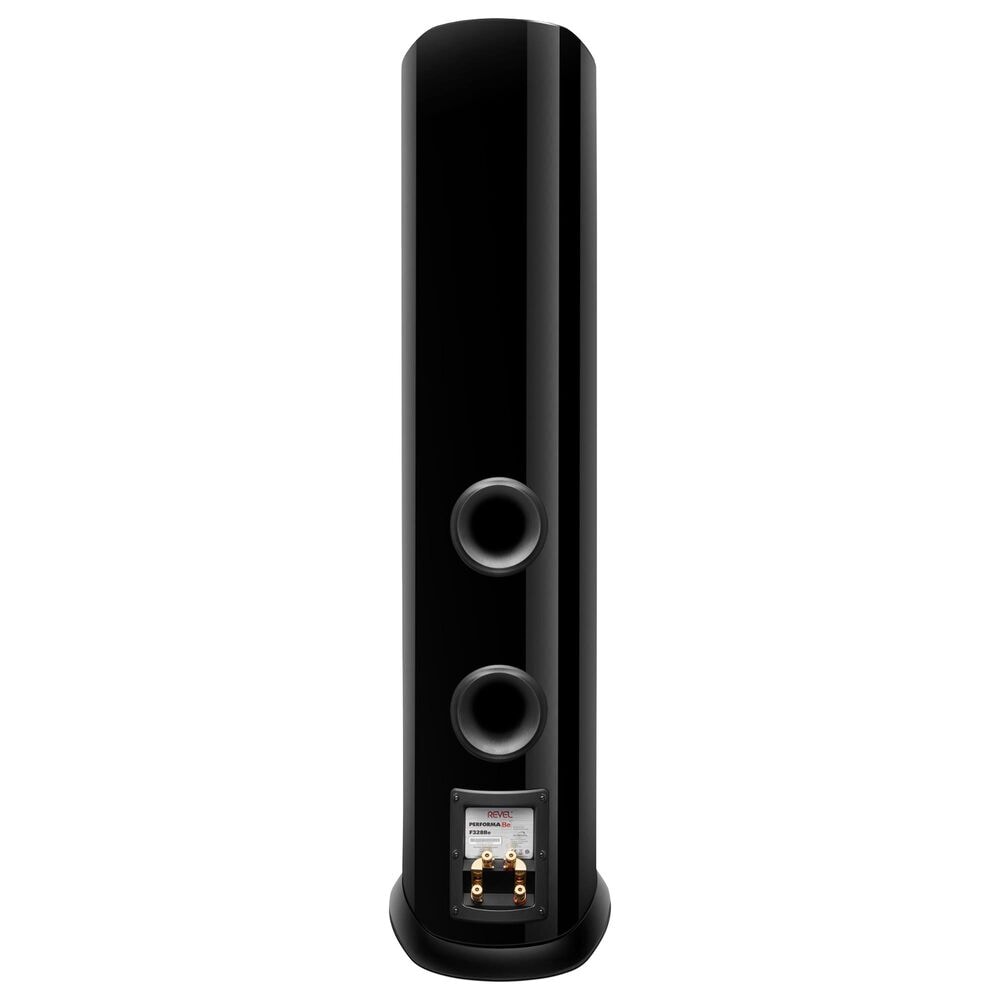

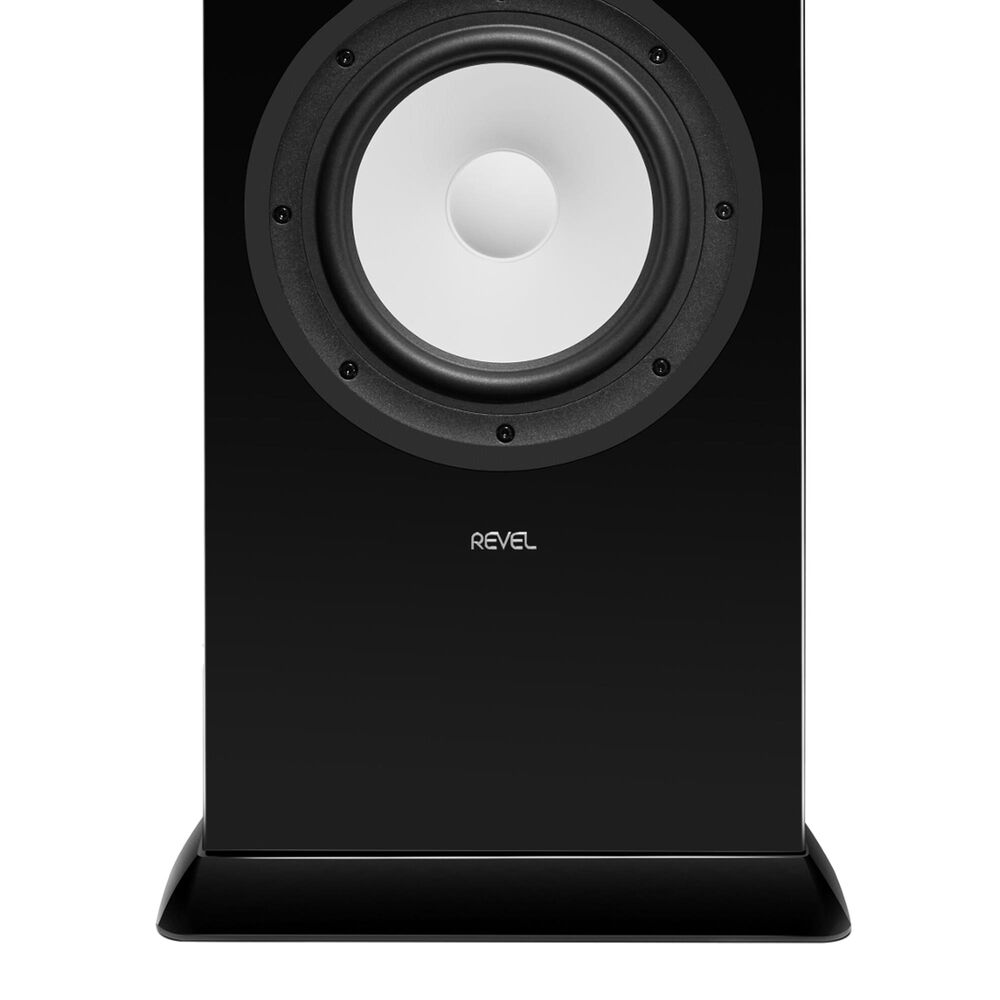

Revel 3-Way Triple 8" Floorstanding Loudspeaker in Black Gloss
SKU#:
57793051
UPC:
050667374617
Model:
F328BE BLACK EACH





- Not on Display in Omaha Store
- Order Today!
- Estimated arrival to Omaha Store: Fri 05/23/25.
Product Color
Product Description
The Revel F328Be is the flagship floorstanding loudspeaker from our award-winning PerformaBe series. The F328Be includes a 1-inch (25mm) beryllium tweeter driven by massive 85mm dual ceramic magnets. The powerful all-new tweeter and 6th-generation ceramic-coated, cast-aluminum Acoustic Lens waveguide seamlessly integrate with the directivity of the companion midrange driver resulting in greater efficiency, improved dynamic range, reduced distortion and increased power handling compared to aluminum or titanium tweeters. The 5.25-inch (130mm) midrange and triple 8-inch (200mm) aluminum cone woofers utilize Deep Ceramic Composite (DCC) cones for improved performance. DCC is a plasma electrolytic oxidation process that uses a plasma discharge to create a coarse ceramic coating on both sides of the aluminum core. The deep ceramic layers sandwiching the aluminum core provide constrained layer damping that push cone breakup modes outside of the passband allowing the driver to maintain ideal pistonic motion throughout its range. DCC cones combine with optimized motor magnetics to deliver improved mid- and low-frequency performance.
Info & Guides
General
Brand
Revel
Speaker Size
8 in
Appearance
Type
Floor Speakers
Dimensions and Weight
Depth
17.625 inches
Height
51.000 inches
Width
13.500 inches
Weight
137.94 lbs
