In-Store Only
Generac 240-Volt 100-Amp Nema 3R Automatic Smart Transfer Switch, , large

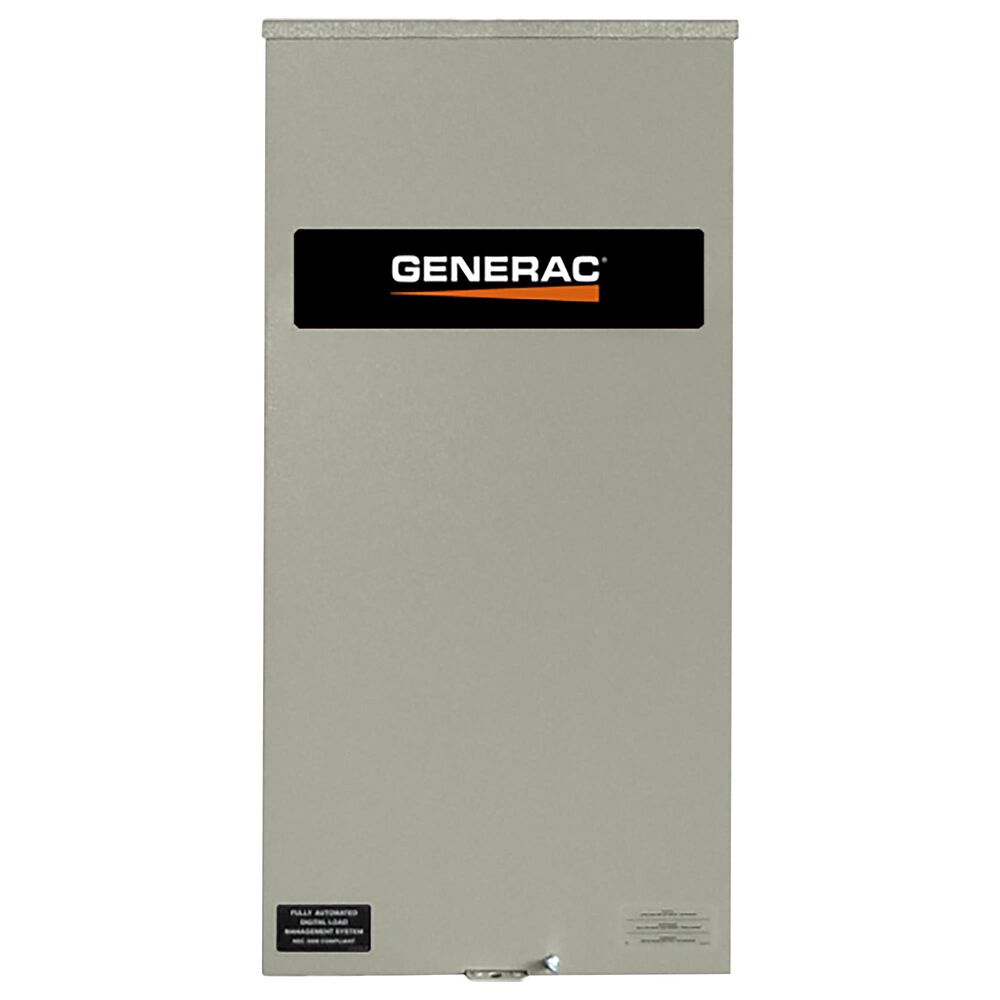

Generac 240-Volt 100-Amp Nema 3R Automatic Smart Transfer Switch

SKU#: 58618075
UPC: 696471069648
Model: RXSW100A3
In-Store Only

Suggested Retail $599.00

$579.00 Mart Price

Save $20.00

In Store Purchase Only

Availability: In-store purchase only. Check your local store for availability.
Product Description
This 100 amp automatic transfer switch is used for transferring electrical load from a utility (normal) power source to a generator (standby) power source. Transfer of electrical loads occurs automatically when the utility power source has failed or is substantially reduced and the generator source voltage and frequency have reached an acceptable level. The transfer switch prevents electrical feedback between two different power sources (such as the utility and generator sources) and for that reason codes require it in all standby electric system installations. The transfer switch consists of a transfer mechanism utility service disconnect circuit breaker and a Smart A/C module incorporating fuses and two terminal blocks for transfer switch connections.
Product Features
  • Generac 100-Amp automatic smart transfer switch
  • Digital power management technology (DPM)
  • Manage Up To (4) HVAC 24V electrical loads (Built-in - No Add. hardware)
  • Monitors selected circuits and automatically supplies power when needed
  • Smart Management Modules (SMM) (Sold Separately)
  • Manage up to (8) more electrical loads - installation efficient
  • Service entrance rated
  • Installs between main meter and service panel
  • Contains load side and line side disconnecting breaker
  • NEMA 3R indoor/outdoor rated
  • Aluminum, wall mountable weather-proof enclosure
  • Electrostatically applied and baked powder paint (Gray)
  • Due to lighting and monitor differences, actual colors and finishes may vary slightly from what appears online
General
Wattage 24000 W
Dimensions and Weight
Weight 20.00 lbs
