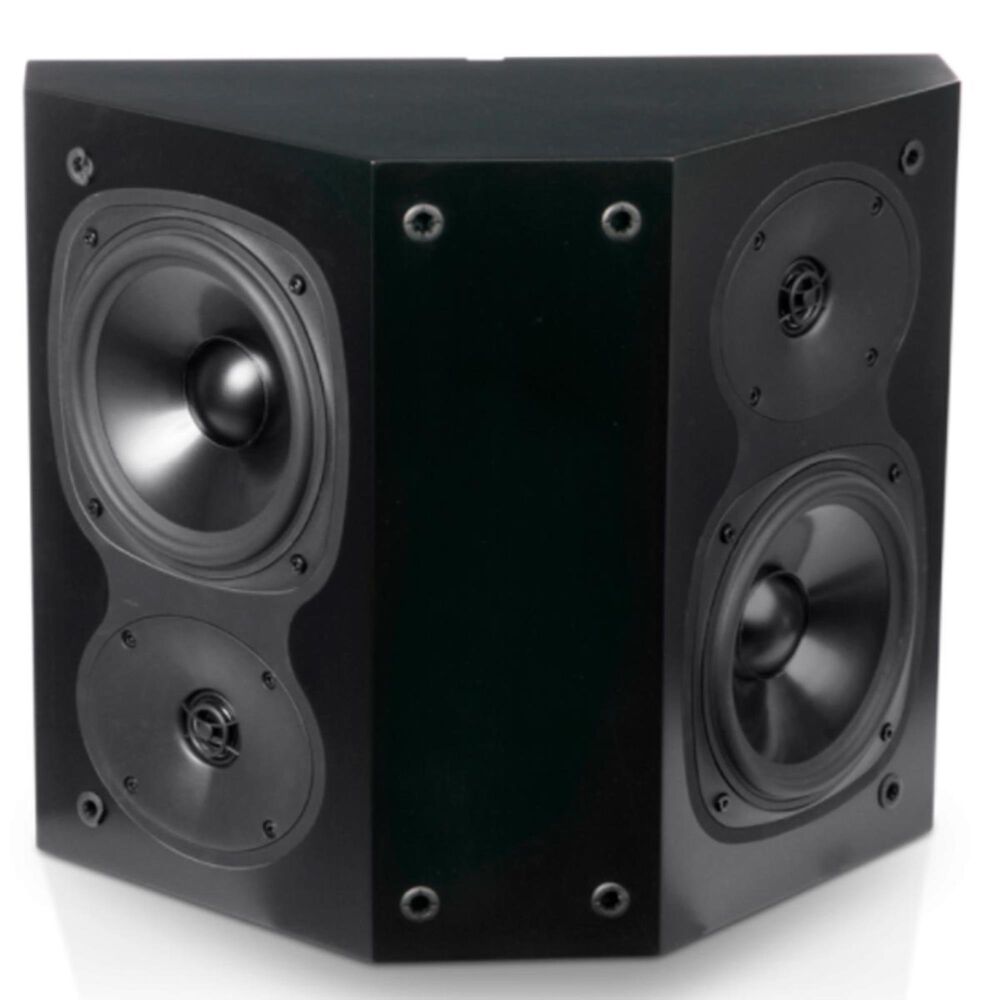

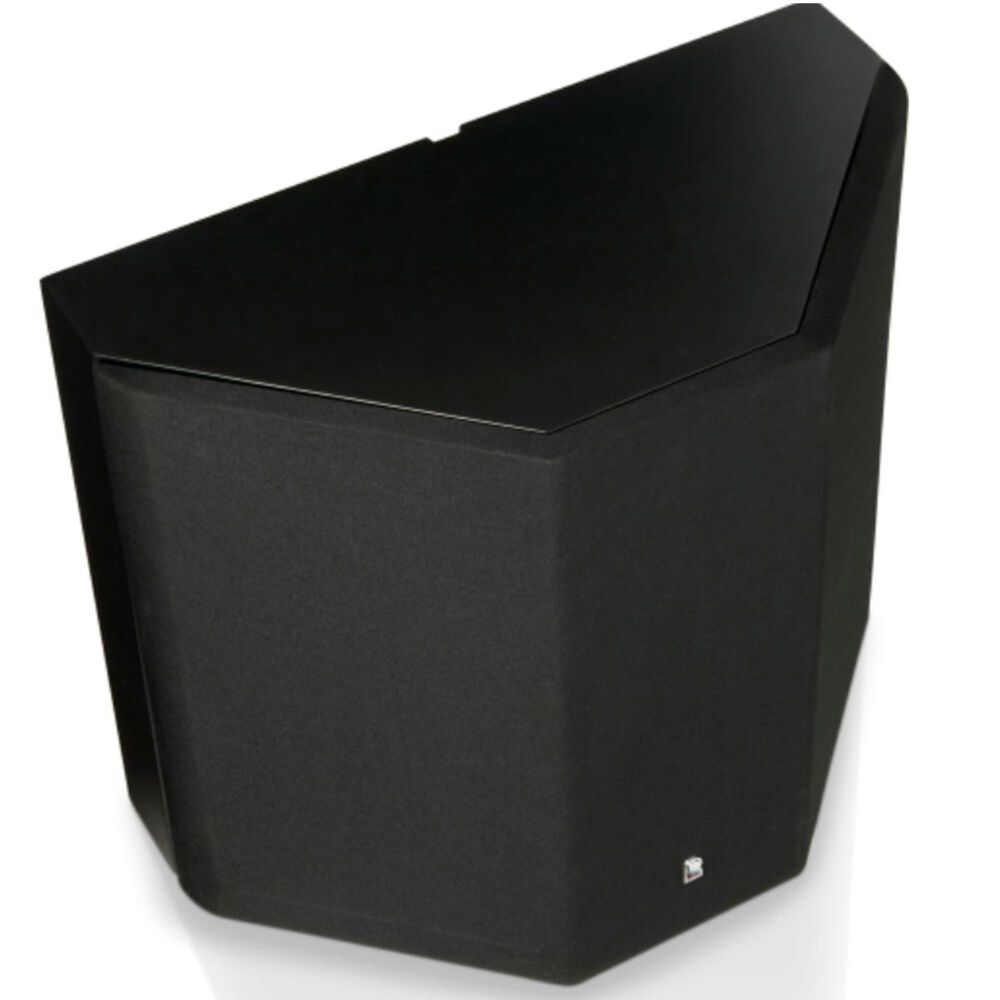

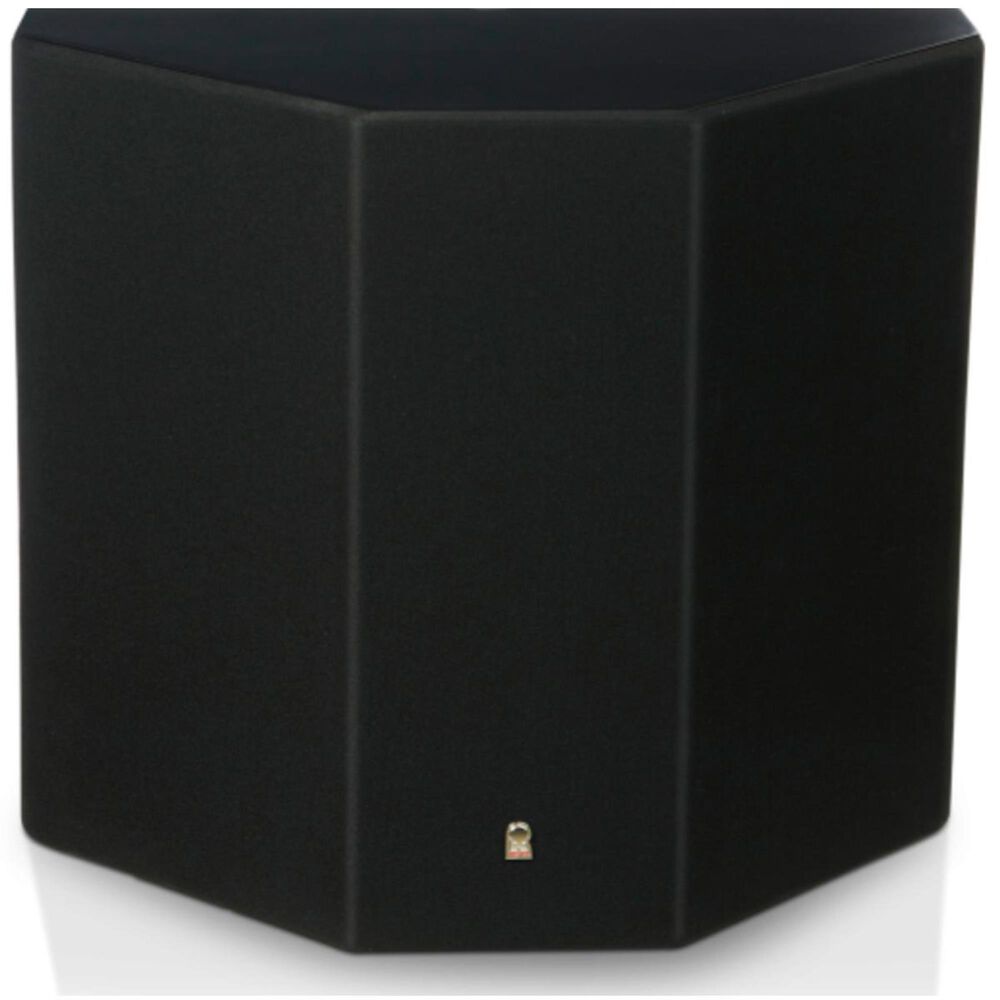

Revel 2-Way Surround Loudspeaker in Matte Black, , large

Revel 2-Way Surround Loudspeaker in Matte Black

SKU#: 49174071
Model: S206
  • Not on Display in Omaha Store
  • Order Today!
  • Estimated arrival to Omaha Store: Thu 10/12/23.

Product Description
The speakers two sets of transducers operate in a bi-polar configuration, which maximizes the speakers timbre match with that of other Revel Performa3 speakers and further integrates the entire systems sound into a spacious, enveloping surround-sound environment. The S206 tweeters feature an integrated acoustic lens waveguide that is based on a breakthrough mathematical approach that accurately matches the tweeters dispersion to that of the low-frequency transducers in the crossover region. This gives the loudspeaker very smooth sound far off-axis an important contributor to overall sound quality, providing consistent sound over an exceptionally wide listening area. In fact, this new waveguide actually increases the tweeters dispersion at higher frequencies. The S206 enclosure features strategically-oriented bracing that eliminates the possibility of enclosure-induced coloration.
Product Features
  • Dual 6.5 (16.5 cm) Aluminum Cone, Cast- frame Woofers
  • 1 (2.5 cm) Aluminum Tweeter with Acoustic Lens Waveguide
  • Recommended amplifier power range: 50 150 watts
  • Low-frequency extension: 52Hz (10dB); 58Hz (6dB); 65Hz (3dB)
  • Nominal impedance: 8 ohms
  • Sensitivity (2.83V/1m): 89dB
  • Crossover frequency: 1.4kHz
  • Enclosure type: Sealed

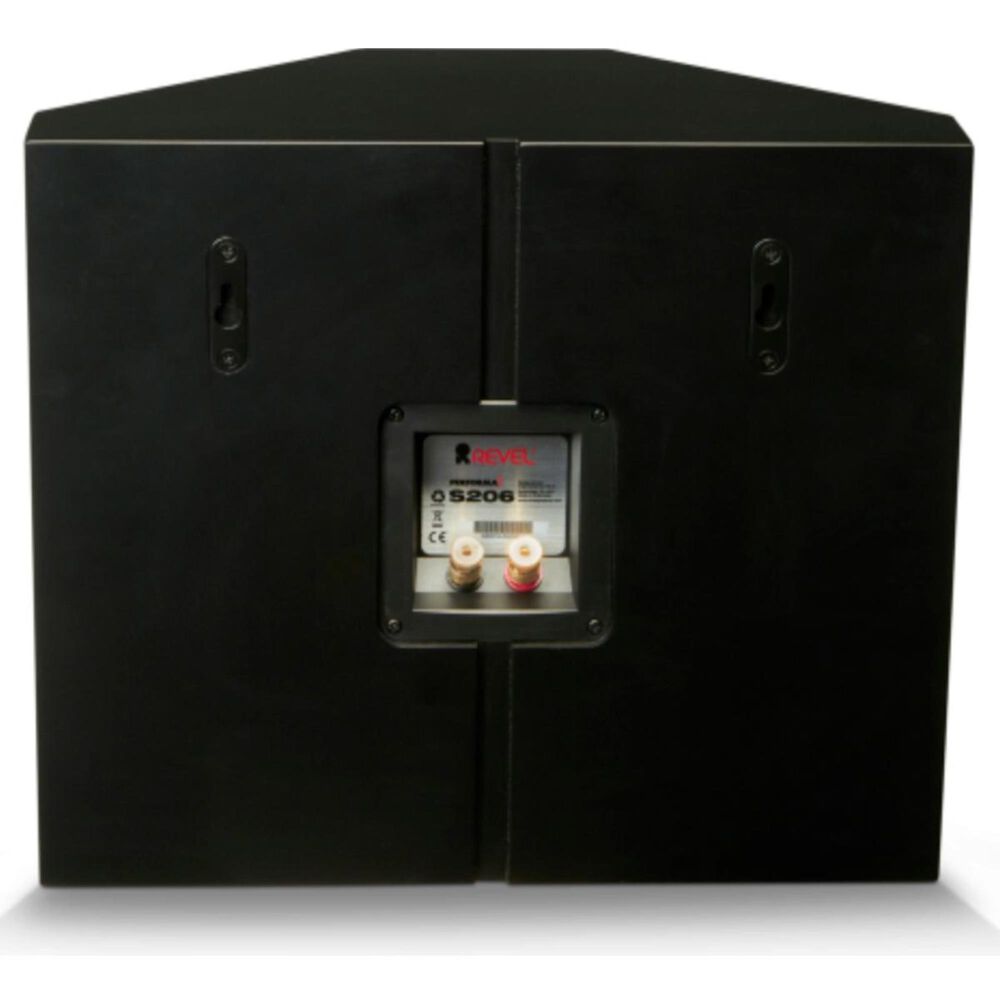

  • Inputs: Gold-plated binding posts
  • Dimensions (H x W x D): 13.5 x 15.8 x 8.5 (34.3 cm x 40 cm x 21.6 cm)
  • Weight: 16 lb (7 kg) Packaged dimensions (H x W x D): 13 x 20.3 x 18.5 (330 x 515 x 470mm)
  • Packaged weight: 21 lb (9.5 kg)
Brand Revel
Channels 2.00
color Black
Power 150 W
Subwoofer Size 6.5 in
Family Electronics
Color Black
Speaker Type Wired
Type Bookshelf Speakers
Dimensions and Weight
Weight 16.00 lbs
