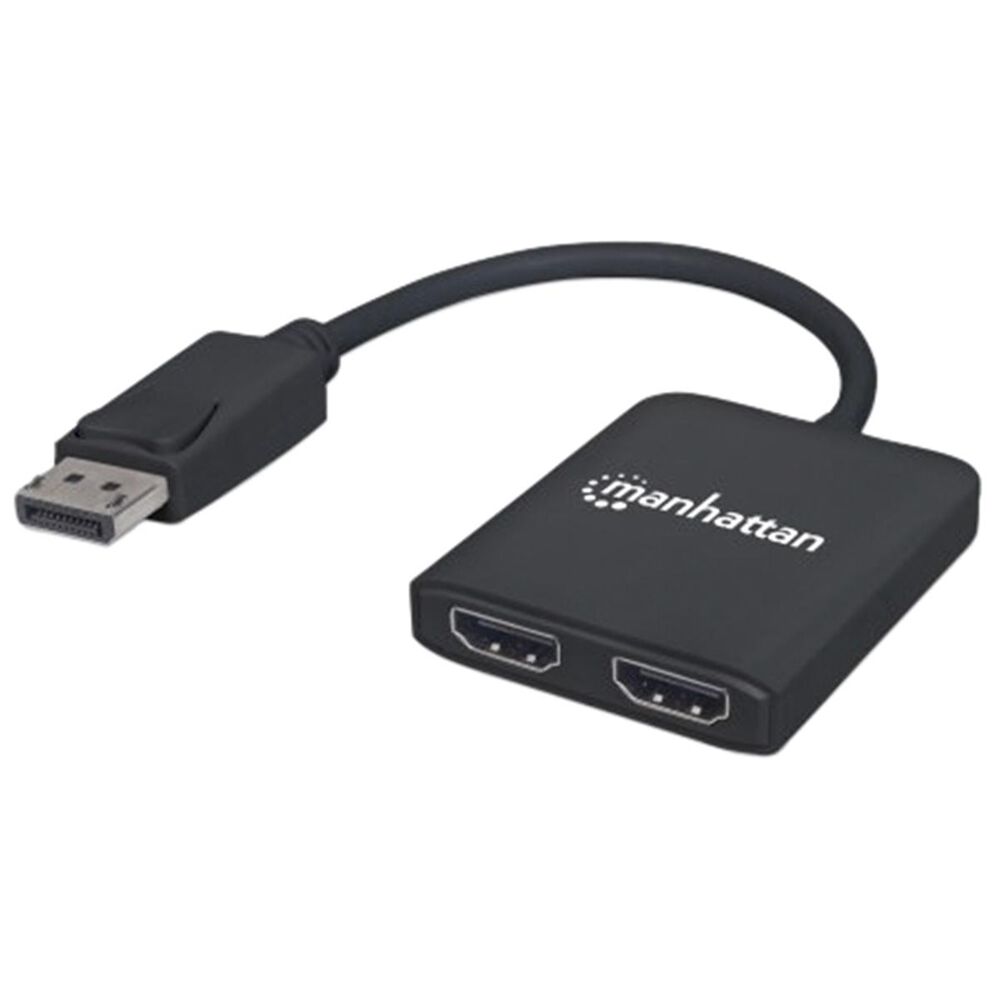

Manhattan DisplayPort to 2-Port HDMI Splitter Hub
SKU#:
52054194
UPC:
766623152716
Model:
152716
Product Description
Easily distribute a single Ultra-High-Definition (UHD) signal to multiple displays. The Manhattan DisplayPort to 2-Port HDMI Splitter Hub with Multi-Stream Transport (MST) streams a 4K DisplayPort (DP) signal from a single UHD source to up to two UHD HDMI displays. Flexible Solution for Many A/V Applications. Ideal for trade shows classrooms video conferencing presentations and retail applications the Manhattan DisplayPort to 2-Port HDMI Splitter Hub with MST features a built-in booster for added signal strength. Its a great choice for splitting and distributing a synchronous signal in either mirrored or extended modes to multiple 4K HDMI displays. MST mode creates a video wall from two displays to give the user a more immersive experience when gaming in a conference setting or in a home office. Quality construction and easy installation. Full compliance with DisplayPort HDCP 2.2 and DVI 1.0 ensures that the Manhattan DisplayPort to 2-Port HDMI Splitter Hub with MST can provide long service and reliable performance. Quickly connect HDMI cables (not included) and the included USB power cable and this affordable Ultra-High-Definition 4K DisplayPort/HDMI solution is complete - no software/hardware configuration or complicated settings required.
Info & Guides
Product Features
- Duplicates an Ultra-High-Definition (UHD) DisplayPort (DP) signal for up to two UHD HDMI displays
- 4K@30Hz resolution, full 3D video and Deep Color
- Supports compressed DTS Master Audio as well as 7.1 surround sound audio up to 192 kHz
- Supports Mirror, Extended and Multi-Stream Transport (MST) modes to maximize work or gaming capabilities
- Mirror mode duplicates the computer screen onto two displays with resolutions up to 4K 30Hz
- Extended mode expands the desktop workspace to up to two additional screens with resolutions up to 4K 30Hz
- MST mode creates a video wall for a more immersive experience, using two screens - with resolutions up to 3840x2160 at 30 Hz - as one, requires a graphics card that supports video-wall function
- USB powered with Plug and Play installation, no special setup or remote required
- Integrated DisplayPort cable
- Ideal for enhancing display capabilities or creating a video wall in locations such as schools, churches, conference rooms, trade shows and retail outlets, perfect for digital signage and AMD Eyefinity Technology in gaming
- HDCP 2.2 compliant
- Gold-plated contacts for corrosion-free connections
- Three-Year warranty
General
Accessory Type
Video Adapters
Brand
Manhattan
Cable Type
DisplayPort
Family
Electronics
Type
Adapters
Dimensions and Weight
Weight
0.05 lbs
